Description
Farm Field fence Manufacturerschiefence farmfence

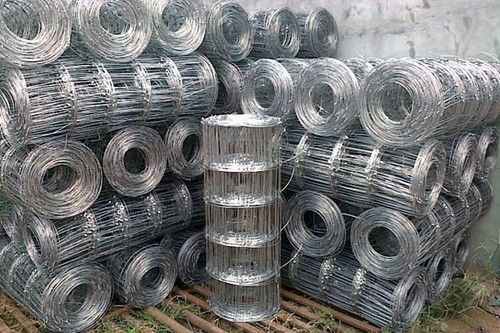

Our Rangemaster 12-1/2 gauge field fencing offers excellent quality. 12-1/2 gauge wire increases strength and is made of lightweight material, so you can build a fence in less time and use less material. This saves time and money.
Rangemaster field fencing made of durable galvanized metal outlasts most livestock fencing. You don't have to invest a lot of time or money in maintenance, but you can rely on new livestock fencing to keep your animals trapped. Heavy duty 12-1/2 gauge fencing is Class 3 and conforms to ASTM-641 standards. It has 10 strands and comes in 47 inch x 330 foot rolls. The spacing is 6 inches horizontally and the top and bottom wires are 11 gauge wire.
Our high quality galvanized livestock fencing ensures that your livestock is completely contained. Use 12-1/2 gauge wire garden fencing to get the highest quality products while saving money.
When choosing a ranch fence, you need to make basic wire choices such as knot type, tensile strength, gauge, galvanization, mesh spacing, etc. For most applications, the optimum values are fixed, high tension, 12 gauge, galvanized class 3 knots with a mesh spacing of 6 inches or less. These qualities combined create high value fences based on cost and performance.
The low carbon wire consists of a steel rod with a carbon content of approximately 0.10%. This type of yarn is easy to handle and is quite forgiving, allowing for increased stretching and stretching. The high tensile wire is made with a high carbon content of approximately 0.28%. By almost tripling the carbon content, the strength of the yarn is significantly increased and the elongation and elongation are reduced.
Additionally, the high tension combined with the fixed knots creates the strongest wire mesh fence available on the market. The combination of these makes them more resistant to damage from wildlife like cattle and wild pigs. The excellent construction prevents boars from breaking the fence fabric like low voltage fence wires. In fact, each 12-gauge horizontal wire has a breaking strength of approximately 1,380 pounds. Additionally, the crimp of the high-tensile horizontal wires are tied with considerable tension, which helps resist forces like springs and maintain shape and strength. With proper installation, good maintenance consists of regular checks for damage from fallen trees, and that's it.
Galvanized coating
The galvanizing process involves immersing the fabricated product in hot zinc and, in some cases, zinc and aluminum. The thickness of the galvanized coating is classified by class and indicates the life expectancy.
Class 1 is an industry standard with 0.28 ounces of zinc coating per square foot. Class 3 applies to 0.80 ounces per square foot. This coating weight is three times that of Class 1. Class 40 (zinc-aluminum) coatings provide the highest degree of protection available on the market. Designed for installing fences in highly corrosive areas. Zinc-aluminum hybrid base coat extends wire life up to twice as long as Class 3 galvanized wire.
barbed wireline
the cheaper wire fencing, it is strong,easy to install, and inexpensive,
weaving mesh
using thinner steel wires into weaving meshes, length as roll, could install with wood or steel poles,
high tensile steel wire fence
using standard wire has a breaking point of 1,650 pounds per strand
• Cattle and Bison
• Hogs
• Horses
• Dogs
• Sheep and Goats
Specification for Field fence farmfence
No.
Specifications and Hole Sizes
Gross Weight (kg)
Top and Bottom Wire Dia.(mm)
Inner Wire Dia.(mm)
Type
Specifications(the incremental vertical hole sizes)
1
7/150/813/50
102+114+127+140+152+178
19.3
2.5
2
2
8/150/813/50
89(75)+89+102+114+127+140+152
20.8
2.5
2
3
8/150/902/50
89+102+114+127+140+152+178
21.6
2.5
2
4
8/150/1016/50
102+114+127+140+152+178+203
22.6
2.5
2
5
8/150/1143/50
114+127+140+152+178+203+229
23.6
2.5
2
6
9/150/991/50
89(75)+89+102+114+127+140+152+178
23.9
2.5
2
7
9/150/1245/50
102+114+127+140+152+178+203+229
26
2.5
2
8
10/150/1194/50
89(75)+89+102+114+127+140+152+178+203
27.3
2.5
2
9
10/150/1334/50
89+102+114+127+140+152+178+203+229
28.4
2.5
2
10
11/150/1422/50
89(75)+89+102+114+127+140+152+178+203+229
30.8
2.5
2
