Description
Gabion wall/Gabion basket for construction protect
Our Gabion wall is made of welded wire mesh with galvanized surface. Also known as galvanized mesh, gabion basket or gabion wall.
Gabion wall Square mesh is available in sizes 76.2mm x 76.2mm or 50.8mm x 50.8mm.
Gabion Basket Wall
Durable gabions that offer excellent drainage properties and aesthetic appeal have many practical uses.
Gabion wall/gabion basket for construction protect such as retaining walls, landscaping and facade can also prove to be more cost effective than traditional construction methods.
Green granite Gabion wall gabion basket
stone gabion basket
Granite Gabion Basket
Sandstone gabion basket
All gabion basket units are supplied flat packed for field assembly and can be connected using tie wires or coil connectors to form box units, usually filled with stones.
MESH GABION AND FITTING PRODUCTS
PVC 8x 10 cm Custom Gabion 12' x 3' x 3'
PVC 8x 10 cm Custom Gabion 9x3x3'
PVC 8x 10 cm Custom Gabion 6x3x3'
PVC 8x 10 cm Custom Gabion 12x4.5x3'
PVC 8x 10 cm Custom Gabion 6x4.5x3'
PVC 8x10 cm Jumbo Gabion Mattress 12x6x1.5'
Stainless steel hog rings packed in boxes, 1600/box
Pneumatic hog ring gun
Geotextile fabric 15' x 300'
Metal staples: 6 "
Size of baskets:
2x1x1 -2m3;
3x1x1 3m3;
4x1x1 4m3;
1x1x0.5 0.5m3;
2x1x0.5 1m3;
3x1x0.5 1.5m3;
4x1x0.5 2m3;
6x2x0.5 6m3;
1.5x1x1 1.5m3;
2x0.5x0.5 0.5m3;
4x0.5x0.5 1m3.
River Mattresses:
2x1x0.3 - 0.6m3;
3x1x0.3 - 0.9m3;
4x1x0.3 - 1.2m3

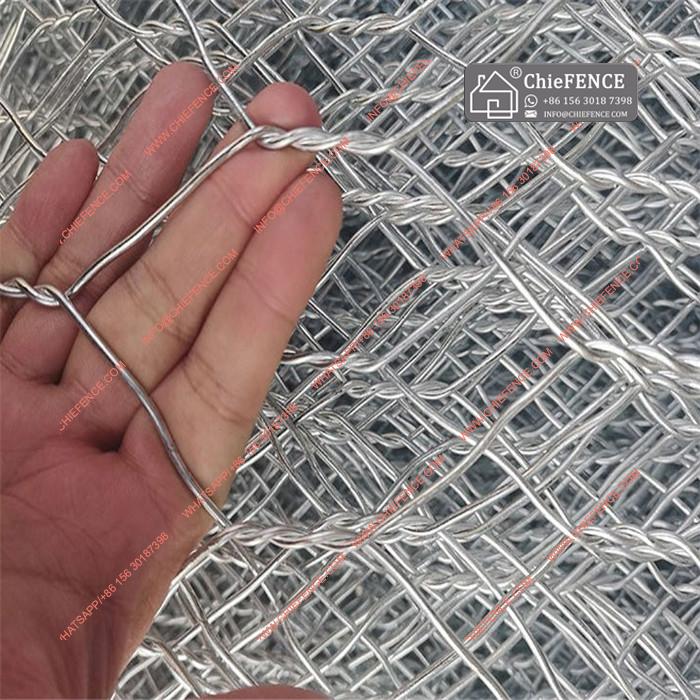

A woven gabion is a box made of a hexagonal double-twisted mesh that can withstand very high earth pressure when filled with stones. This is ideal for landslides, preventing soil erosion and stabilizing wetlands.
A braided mesh gabion basket filled with all stones is an effective and efficient technical solution in the design, construction and maintenance of soft structures for various protections. Woven mesh is extremely durable and flexible, making it an ideal solution in harsh conditions.

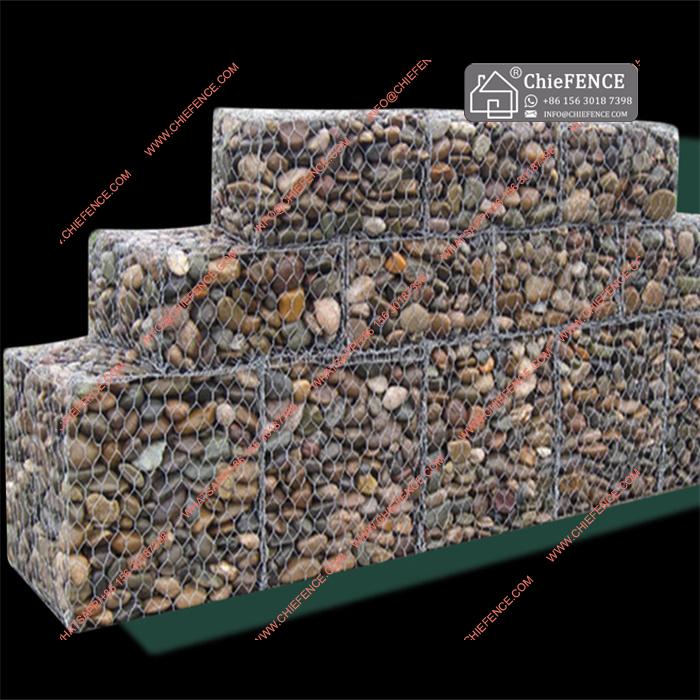

Woven wire gabion retaining walls are generally designed as BS 8002 gravity retaining walls. Alternatively, a woven wire mesh gabion basket can be used as the structure surface of the reinforced soil by attaching a reinforcing sheet such as a geogrid or a Roquefort gabion net. ..
Typical application
Retaining wall
River and canal training works
Protection against erosion and scour; road protection; protection of bridges
Hydraulic structures, dams, culverts
Coastal embankment works
Protection against rockfall and soil erosion
Characteristic:
Wire gabion baskets can be used in combination with a variety of gabion products such as boxes, cages and mattresses. It is stronger and more durable than welded mesh.
We can offer woven mesh gabion baskets with several finishes such as galvanized, hot-dip galvanized and powder coated. Standard design or custom size upon request. Please contact us for your specific needs.

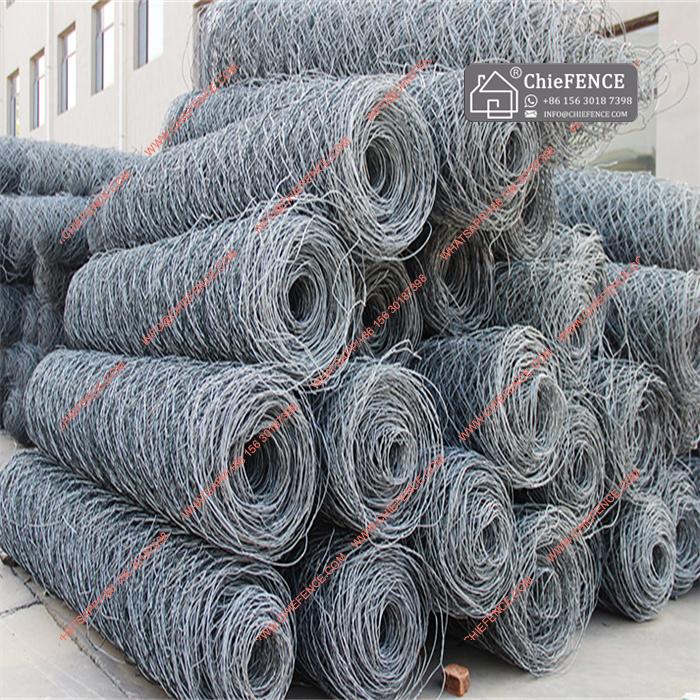

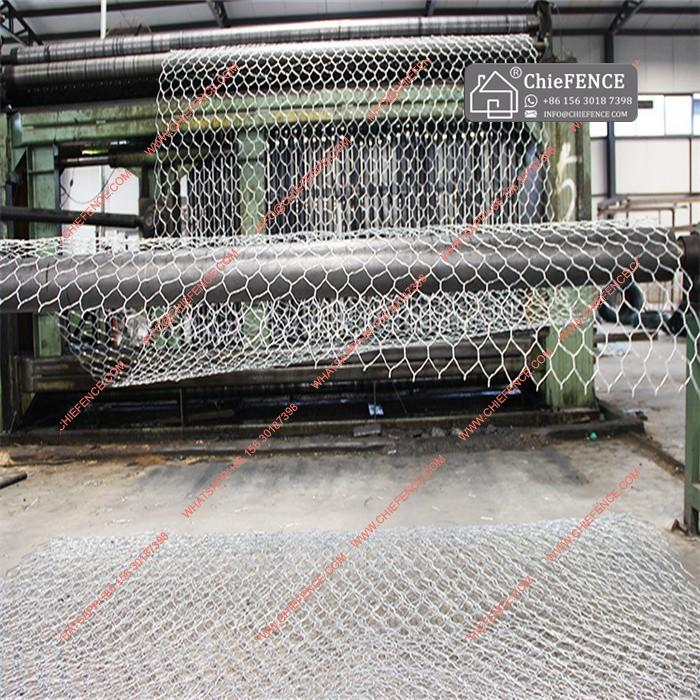

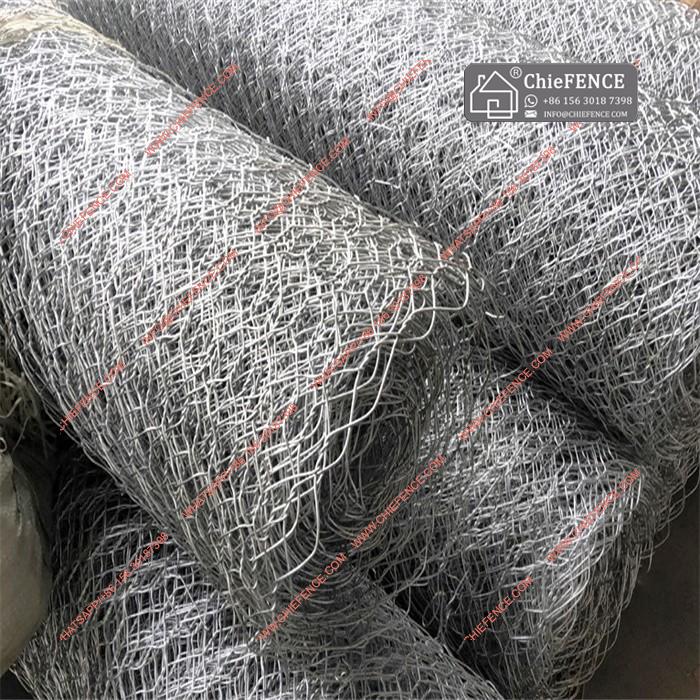

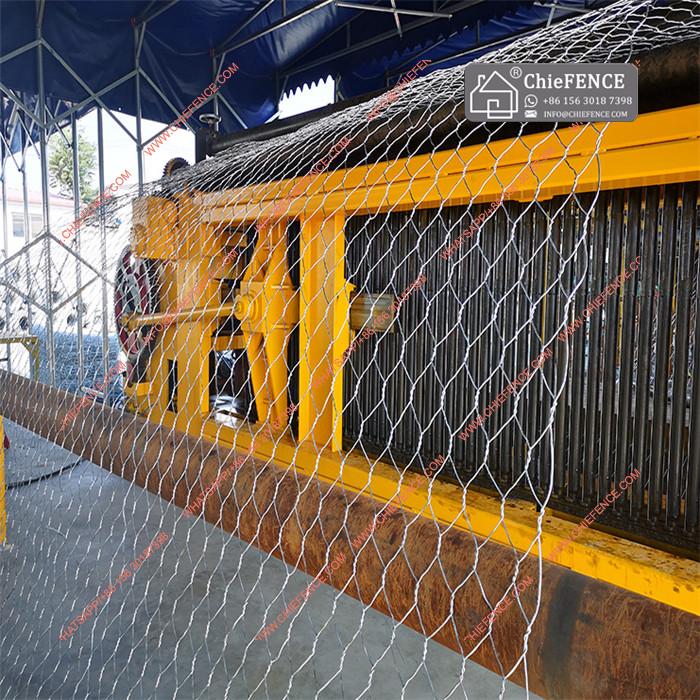

The woven gabion is woven from a machine, then cut and folded into various modules such as gabion baskets, reno mattresses, anti-fall nets and a bag.

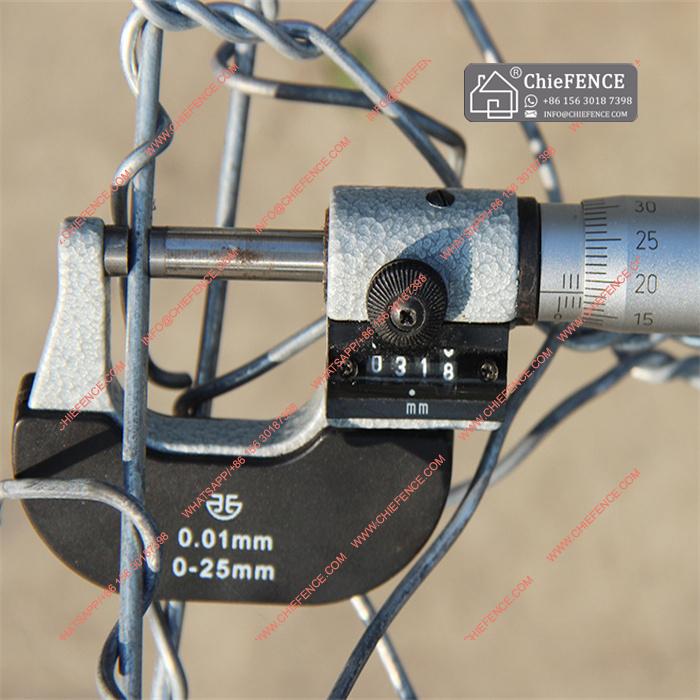

The gabion wire is a combination of 270g/m2 hot-dip galvanized wire with a diameter of 2.7/3.4mm. Recently, 5% or 10% Alu-Zinc wire (Galfan) has been applied.

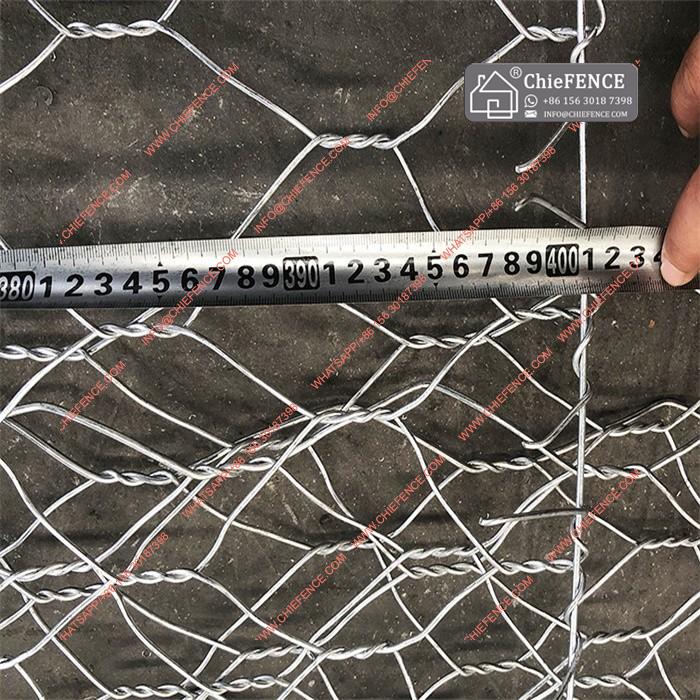

The most popular gabion meshes are 80*100mm and 60*80mm.

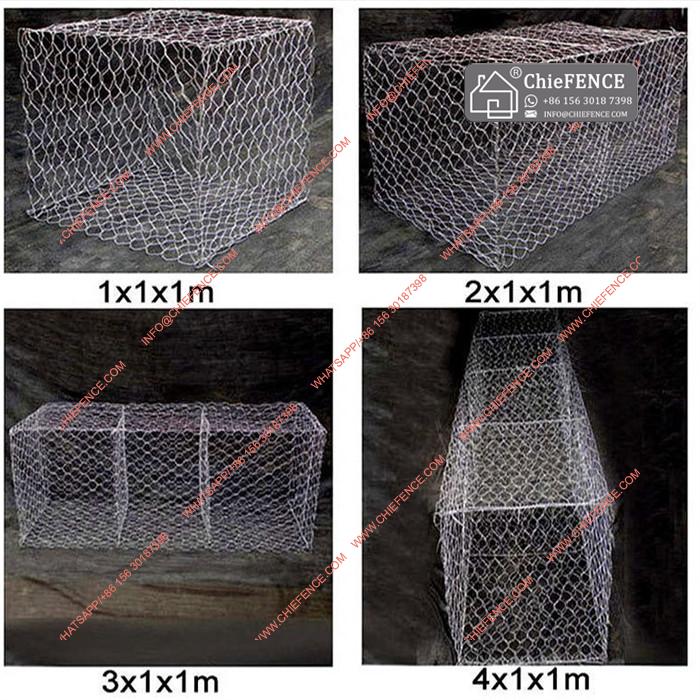

The most popular gabion modules are 1*1*1m, 2*1*1m baskets, 1*1*0.5m, 2*1*0.5m mattresses, or 2*15m, 2*25m rockfall nets.
The wire mesh used to make the gabion strictly conforms to EN10223-3 and the gabion also meets the requirements of ASTM A975-97.
The tensile strength of all wires and running wires used in gabion containers is 350-500 N/mm according to EN10223-3, 2 BS1052/80 and ASTM A641-97. (Wire pointing to the wire before making the mesh).
