Product Item：300024

Brand Name：Chiefence

Certification：ISO/Q195/HR2/BS-S185/ASTM A285M GR.B/SGS,CE/BS EN10244-2:2009 CLASS-D

Model Number：300024

Materials：Q195 or Q235

Type：Double wire mesh fence

Treatment：Per-Galvanized with powder coating colors, Like green, yellow, black,

Color：Green RAL 6005 , White RAL 9010 , Black RAL 9005， Grey RAL 7021 , Other colours are available on request

Warranty：10 years

Market：South Africa, Botswana, Zimbabwe, Zambia, Namibia, Tanzania, Nigeria, Congo, Ghana, Turkey, Algeria, Uganda, Mozambique

Payment Terms：TT,LC, Cash.

Packaging Details：1.Panel-Metal Pallet wrapped with cardboard plate and then wrapped with plastic film 2. Post- Wrapped with PP bags,then put on pallet ,wrapped with plastic film 3. Accessories- Carton 4. Customized pa

Delivery Time：7-15 days/20' container, 10-25 days /40’container

Description

Rampart Double Wire double wire panel perimeter fencing-chiefence

2M high double wire mesh panel

Double welded wire fence, also known as 2D security fence,

double panel fence. It is very popular in European countries,

The twin wire panel looks like a normal fence panel. However, with traditional welded wire fencing such as 358 and 3D fence , the 2D welded security fence panel with two horizontal wires is particularly strong.

The double wire mesh can be a regular type with large holes or a 358 fence with small holes.

Two options for spacing between two double wires in a typical 2D security fence have been offered: double all horizontal wires.868 and 656 .

Generally the most common types of welded double panel fences. Type 868 welded wire mesh means the panel has two horizontal wires with a diameter of 8mm and a vertical wire with a diameter of 6mm. This double mesh design makes cutting with standard tools extremely difficult and prevents intruders from accessing your site. Mesh fences are also made in a way that makes climbing difficult. This will prevent intruders from trying to climb the surrounding fences.

The mesh openings are all the same size, 200mm x 50mm.

FENCE HEIGHT (M)	PANEL SIZE Width X High(MM)	POST OVERALL(MM)	SHS/RHS POST SIZE (MM)	NO. FIXINGS (1 CLAMP)
1.000	1030 x 2500	1600	60 x 40	4
1.200	1230 x 2500	1850	60 x 40	4
1.800	1830 x 2500	2400	60 x 40	8
2.000	2030 x 2500	2700	60 x 40	8
2.400	2430 x 2500	3200	60 x 40	10
3.000	3030 x 2500	3900	80 x 40	12
3.100	3060 x 2500	3900	80 x 40	13

Materials:	Pre-galvanised steel
PPC finish:	Green, Blue, Black, Red, Grey, Brown
Compliant	BS 10244-2:2001 Class D (Galvanised Wire)

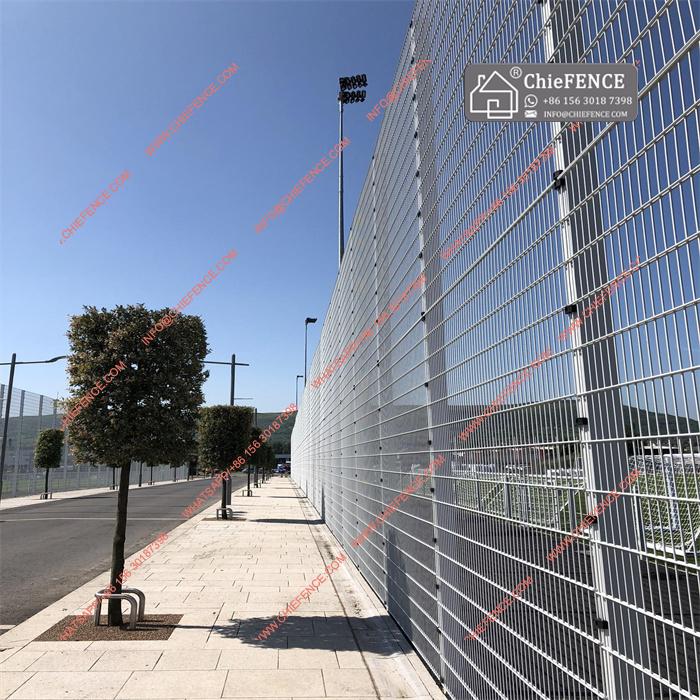

2.4m high double mesh 868 wire fence

As standard, the double wire mesh system is pre-galvanized and has a powder coated finish.

With this double layer of protection, this fence is a powerful and robust system for permanent installations and is extremely resistant to other forms of damage such as the effects of weathering and vandalism.Twin Wire Mesh is an aesthetic, robust and easy to install fencing system. Satisfactory low maintenance solution.

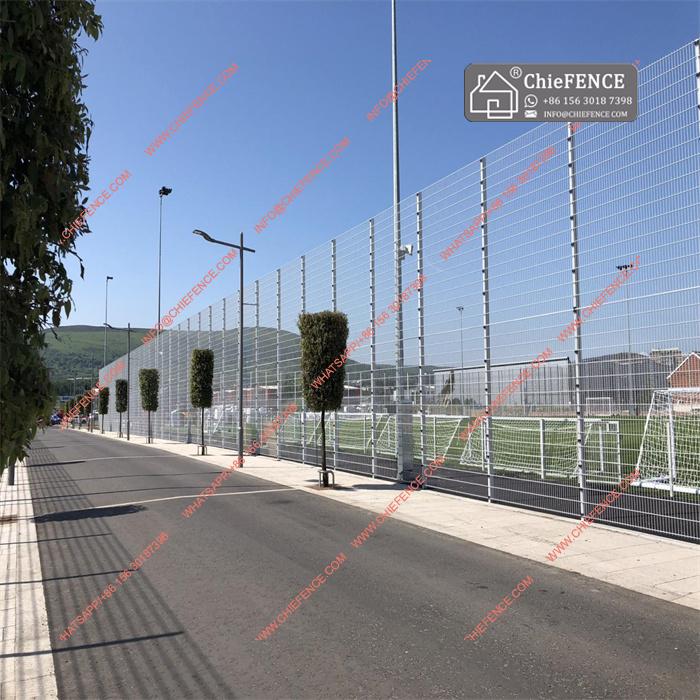

The combination of height, strength and appearance makes these fences ideal for a wide range of applications ranging from commercial, industrial and educational environments to sports and recreational environments.

Designed for areas with high public traffic, the need for protection is growing. The rigid and modern double wire fence system offers a truly creative and durable fence system that replaces the current fence system without being bulky. double wire fence offers a modern urban look that can be adapted to traditional or contemporary concepts.

Fusion with traditional and contemporary architecture

Double wire resists vandalism

transparent panel

Simple and economical installation

Difficult to cut and climb

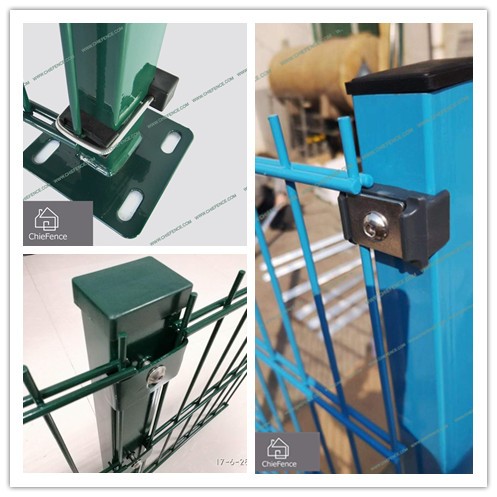

Versatile post and clamp system

Brackets and hardware for all installations

Designed for areas with high public traffic, the need for protection is growing.

Fusion with traditional and contemporary architecture

Double wire resists vandalism

transparent panel

Simple and economical installation
