Modular welded Gabion 3x3'

Product Item：300065

Brand Name：Chiefence

Certification：ISO/Q195/HR2/BS-S185/ASTM A285M GR.B/SGS,CE/BS EN10244-2:2009 CLASS-D

Model Number：300065

Materials：Q195 or Q235

Type：gabion box

Treatment：Per-Galvanized with powder coating colors, Like green, yellow, black,

Color：Green RAL 6005 , White RAL 9010 , Black RAL 9005， Grey RAL 7021 , Other colours are available on request

Warranty：10 years

Market：South Africa, Botswana, Zimbabwe, Zambia, Namibia, Tanzania, Nigeria, Congo, Ghana, Turkey, Algeria, Uganda, Mozambique

Payment Terms：TT,LC, Cash.

Packaging Details：1.Panel-Metal Pallet wrapped with cardboard plate and then wrapped with plastic film 2. Post- Wrapped with PP bags,then put on pallet ,wrapped with plastic film 3. Accessories- Carton 4. Customized pa

Delivery Time：7-15 days/20' container, 10-25 days /40’container

Description

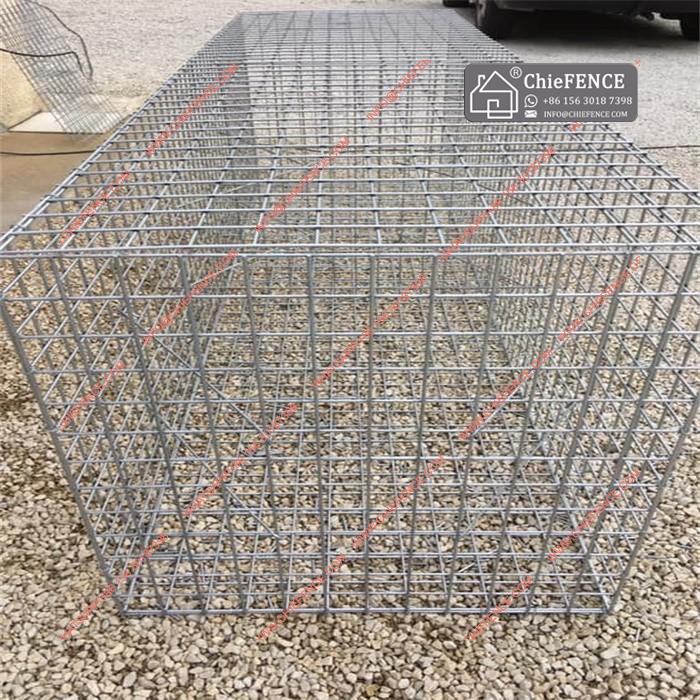

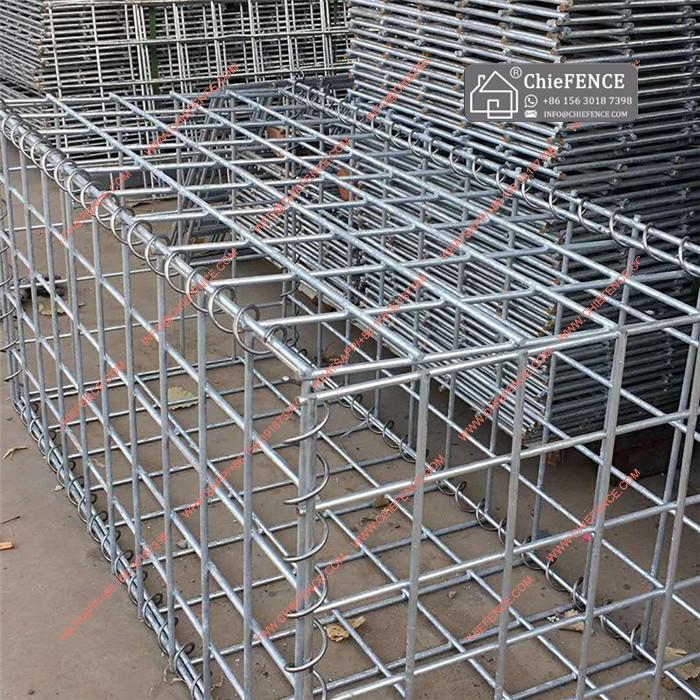

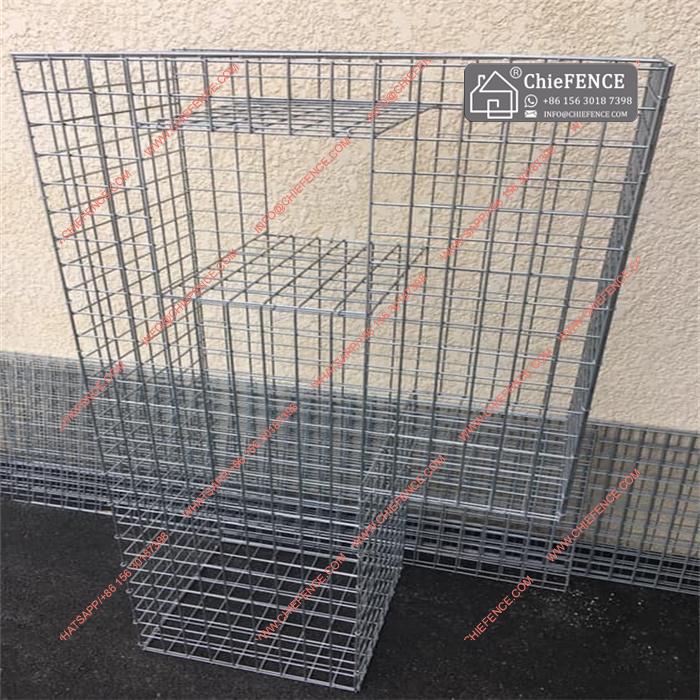

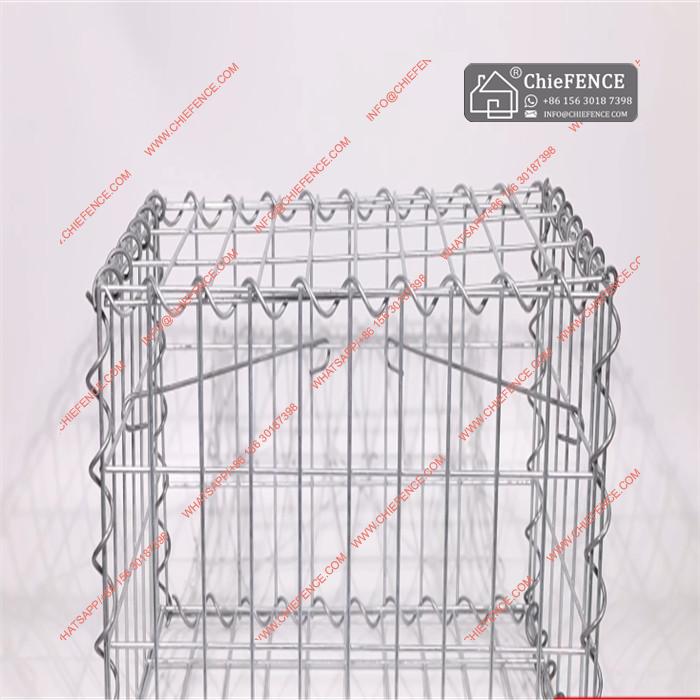

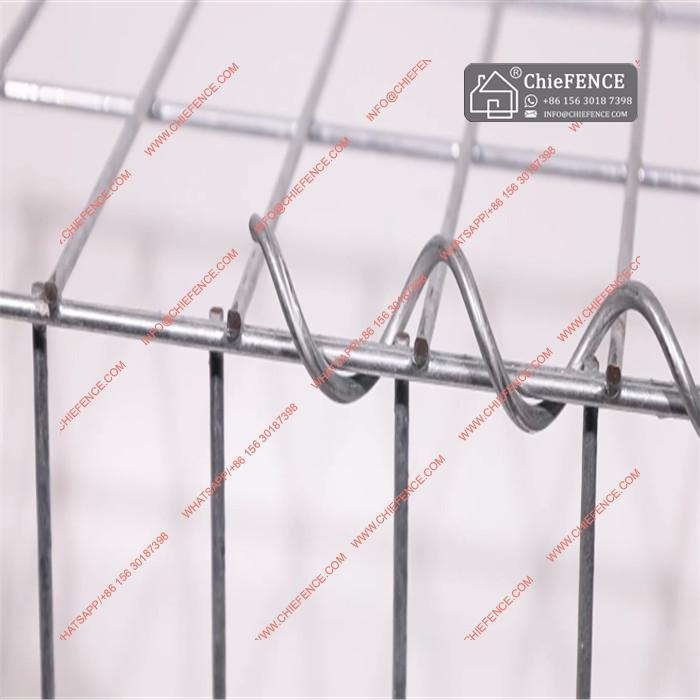

Modular welded Gabion 3x3" Mesh Galvanized Steel panel

The Gabion Basket collection offers a durable, custom and economical solution to protect gabion walls, gabion fences, outdoor furniture and architectural designs for residential and commercial projects.

Our architectural and modular gabion cages are the best alternative to cement and brick walls.

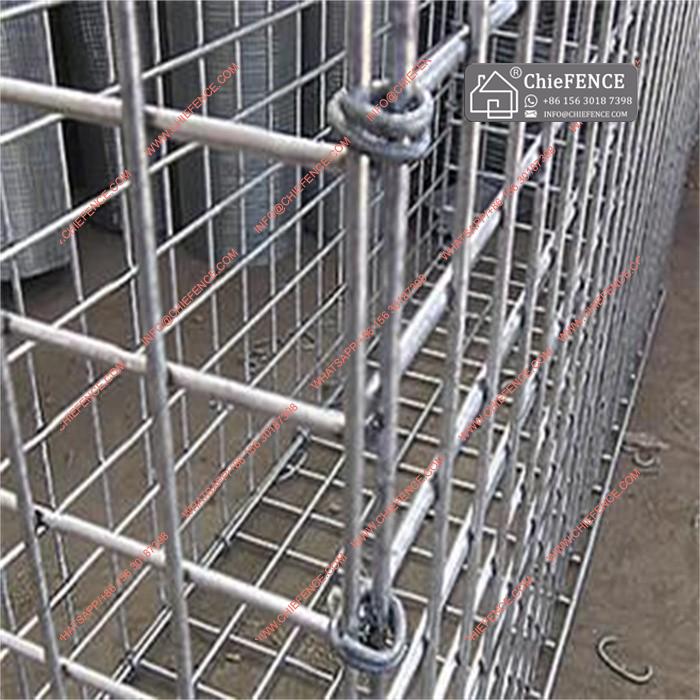

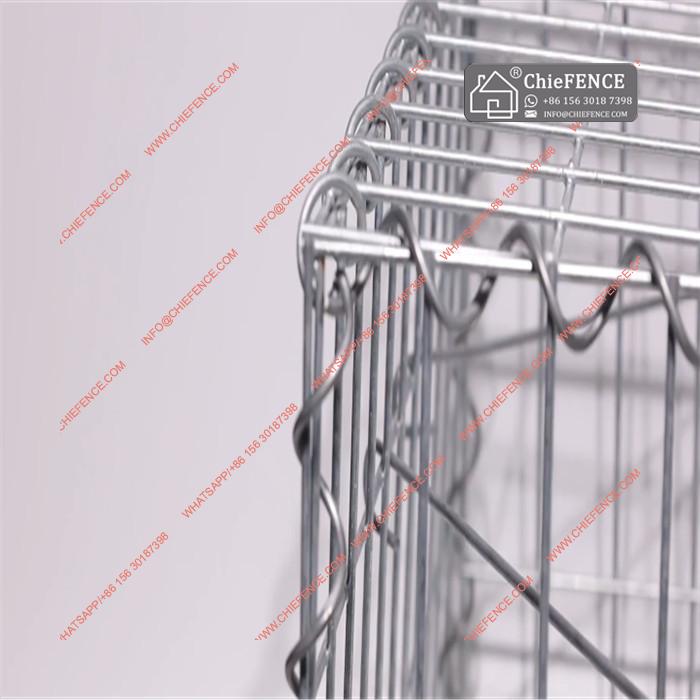

Our gabion stone baskets can be cut in the field to fit curves, culverts or angles. Unlike competitors' gabions, it uses wire reinforcement at all external corners of the structure. This strengthens the sides, eliminates bulges, increases openness, and makes backfilling easier.

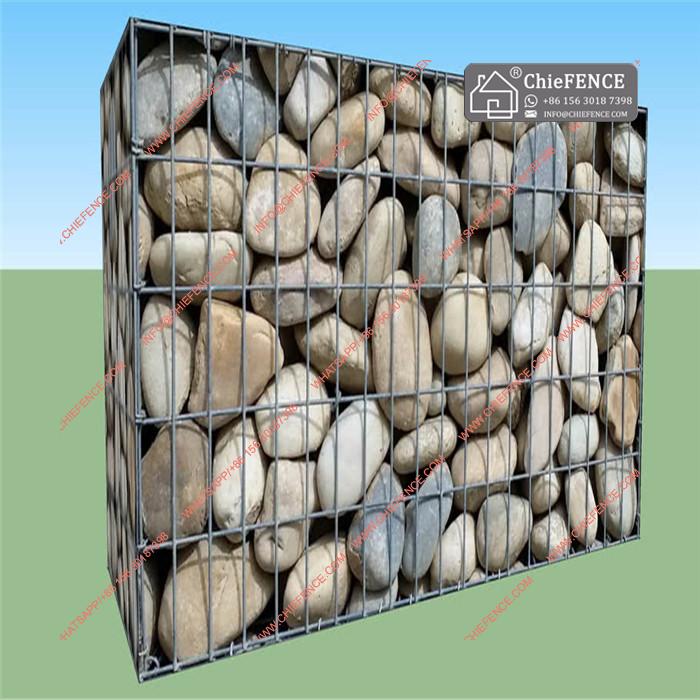

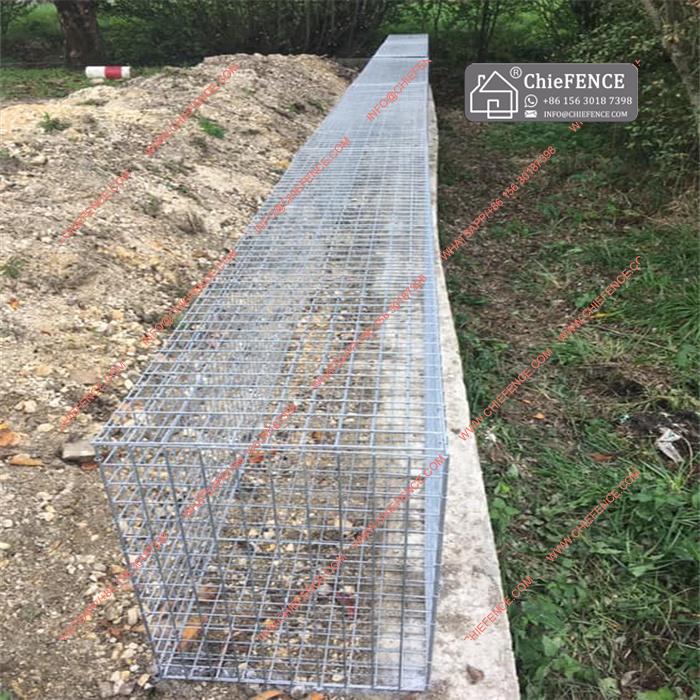

A gabion is a modular building block made of wire mesh and filled with rock, stone or crushed concrete on the ground. They are filled on site and often filled with locally available materials, which is capital cost efficient and relatively inexpensive. Because they are flexible and porous, they can absorb wave and wind energy, reducing erosion problems associated with impermeable seawalls such as concrete revetments. The gabion can be placed like an inclined "mattress" or near a vertical cubic basket. The latter aims to stabilize banks or cliffs. Steel welded gabions are very sturdy wire mesh rock filled baskets that are primarily used as retaining walls. Due to their characteristic rigidity, these baskets are particularly suitable for tall and freestanding structures. They are used in many situations: stabilization of earth movements and erosion, control of rivers, watersheds, rehabilitation of canals, landscaping, retaining walls. They can be made with welded mesh or woven wire. Welded mesh gabions do not require tensioning. This keeps the shape, has no bulges or bumps and fits easily against the wall. If you need to pass pipes, etc., you can drill them and fill them mechanically.

Decoration & modular.

Architectural Landscaping Gabion Basket made of heavy gauge steel wire welded and Galfan coated steel 3x3" (76.2x76.2mm) open mesh

Diameter 4mm (gauge 9)

All of the gabion panels are made of heavy gauge welded galvanized steel. The galvanized coating prevents corrosion and provides great strength to any structure while being lightweight.

Galvan is a hot-dip galvanized steel coated with an alloy of 95% zinc and 5% aluminum. This solid solution improves corrosion resistance by more than 50% compared to conventional galvanizing.

All components are shipped flat and easy to install.

Gabions Wire Diameter	3.0mm,3.5mm,4.0mm, 4.5mm,5.0mm
Welded Gabions Mesh Size	50x50mm, 50x100mm, 100x100mm
Gabion Size	100x30x30cm, 100x50x30cm, 100x80x30cm, 100x100x30cm, 100x100x50cm, 200x100x50cm, 300x200x50cm
Surface Treatment	Hot dipped galvanized wire,electro galvanized wire
Other size is accepted.
