Description
Gabion baskets are used in many situations such as stabilizing movement and soil erosion, controlling rivers, reservoirs, canal renovations, landscaping, retaining walls, etc. They can be welded mesh or braided wire. Welded mesh Gabions can be assembled faster and do not require tension. This will keep the shape smooth and easy to mount on the wall.
Stone filling
The fill stone meets the engineer's specifications and be a hard and durable material.
Gabion mattress fill stone should be 100mm or more, usually 150mm or less, and fit 90% in a ring with a diameter of 100mm. To obtain a more aesthetic surface treatment, the face must be conditioned manually before the machine fills in.
quality
1. Zinc galvanized coating of wire diameter 260g
2. The PVC coating uses the best wire material
3. Mesh opening-80 * 100
4. Zero defects of the gabion
5. Edge control
6. Inspecting the weaving wire
Mesh gabion container for stone and gravel retention structure, compliant with ASTM A975-97
Gabion container structure:

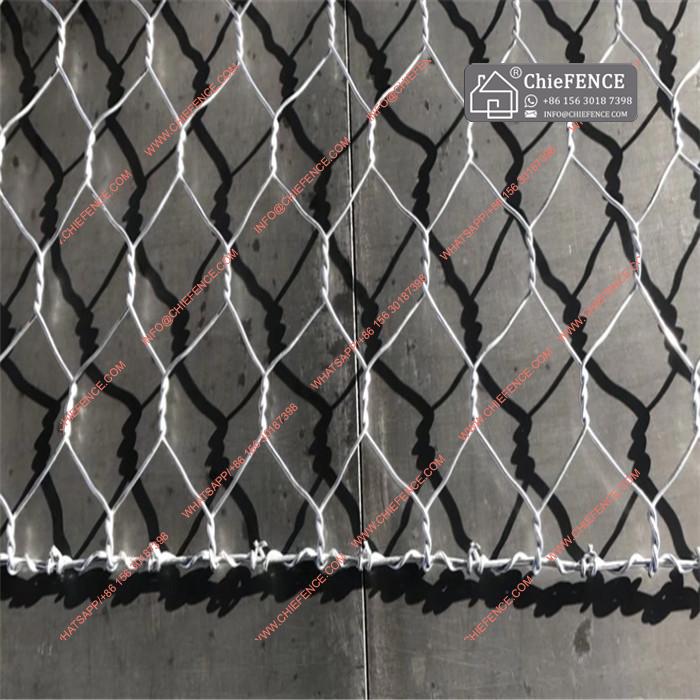

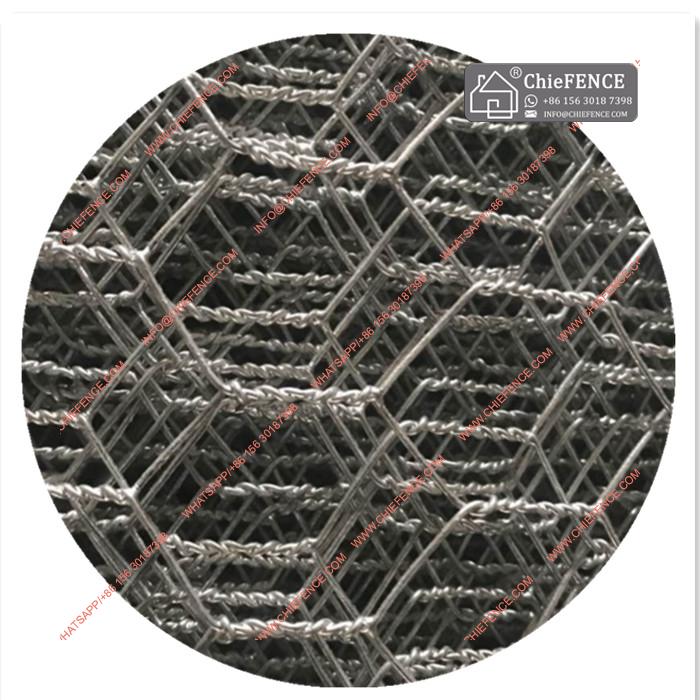

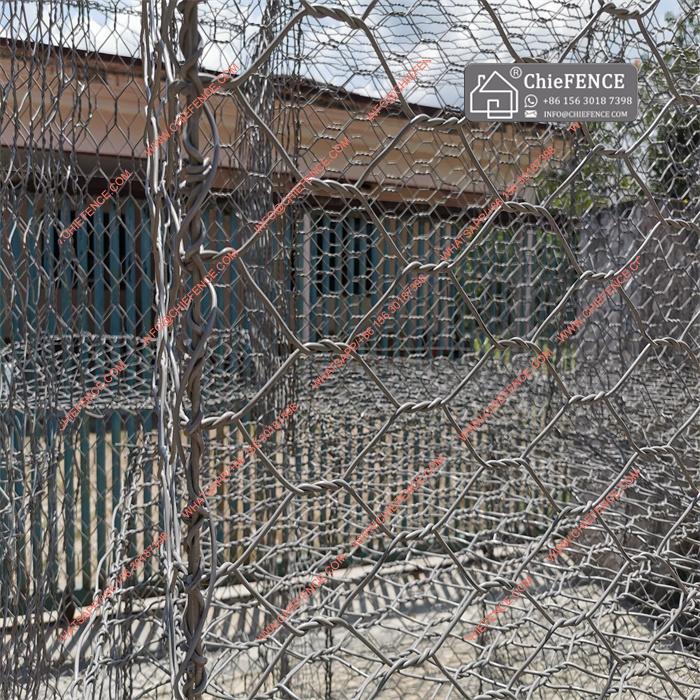

The gabion container is shaped into a rectangle or a square with twisted wire mesh before the stone is placed in the cage. The trellis is a hexagonal opening in a galvanized/PVC coated/zinc plated mild steel double twist wire mesh. The container boxes will be offered in different lengths, widths and heights. All edges of the structure are selected with thicker diameter racing wires.
Wire material:

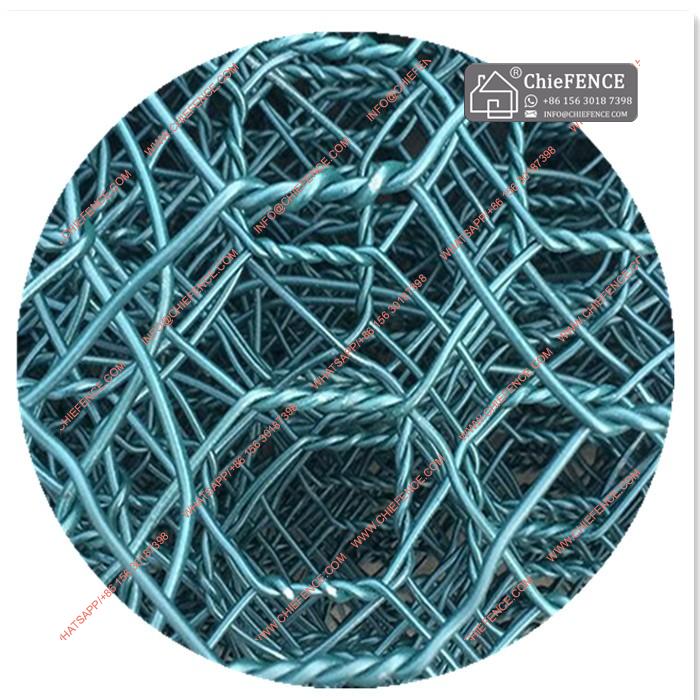

Galvanized, galvanized PVC coated and stainless steel wires are often used in the manufacture of gabions. These materials do not rust even in a humid and corrosive environment.
All wires used for cabling work during manufacture and construction of gabions should be galvanized in accordance with EN 10244-2:2009. The minimum zinc coating on 2.7mm diameter wire should be d at least 245 gr/m². If the diameter of the wire used to make the net is greater than the specified value, the thickness of the zinc coating must comply with EN 10244-2: 2009.
The adhesion of the zinc coating to the wire should prevent it from chipping or cracking when rubbed with bare hands when the wire is wound 6 turns around a cylindrical mandrel that is 4 times the diameter of the thread.
Edge
All edges of a standard gabion, including the end panel and the diaphragm, must be mechanically selected to prevent the mesh from being exposed and to exert the full strength of the mesh. The diameter of the wire used for the ear must be at least 3.4 mm. The zinc coating on these wires must comply with EN 10244-2: 2009.
Race wire
Sufficient amount of connecting ropes and lines should be provided to the gabion for all wiring work done during the construction of the gabion construction. The quantity of these threads is estimated at around 5%. The weight of the gabion provided. The diameter of the running wire must be 2.2 mm and the minimum mass of zinc coating must comply with EN 10244 - 2: 2009.
tolerance
The diameter tolerance of zinc plated round wire should be as given in Table 2 of BS1052:1980.
1. Sustainability
Galvanized and PVC coated wire mesh has excellent corrosion resistance. It is very effective in resisting the effects of the destruction of nature and bad weather. Its lifespan is more than 25 years and it generally does not require maintenance.
2. Flexibility
Gabion wire mesh box has good tensile strength. In particular, the wire mesh has a flexible structure and can withstand large deformations. Even if the wire is broken, the whole structure will not be affected.
3. Great scenery and shielding effect
Gabion Wire Basket combines engineering and greening to effectively prevent soil erosion. After placing the stones and other coatings in the gabion, there remains a void of 30%. Gap allows plantations to grow over time. The use of a gabion does not destroy the natural environment. On the contrary, it is an ideal choice for landscaping and greening.
4. Stronger impact resistance
The impact strength of the gabion basket structure is more than twice the impact strength of a general protective wall. The gabion net has a flexible structure, and when affected by water refining, the stones in the gabion basket do not affect the overall performance when moved by the impact.
5. Easy and quick installation
Installation is easy. All you have to do is put the stone in a gabion cage and seal it. No special skills, electricity or water is required.
6. Profitability
Gabion wire mesh is more economical than traditional structures because it uses less material. Also, it requires less maintenance and lower labor costs.

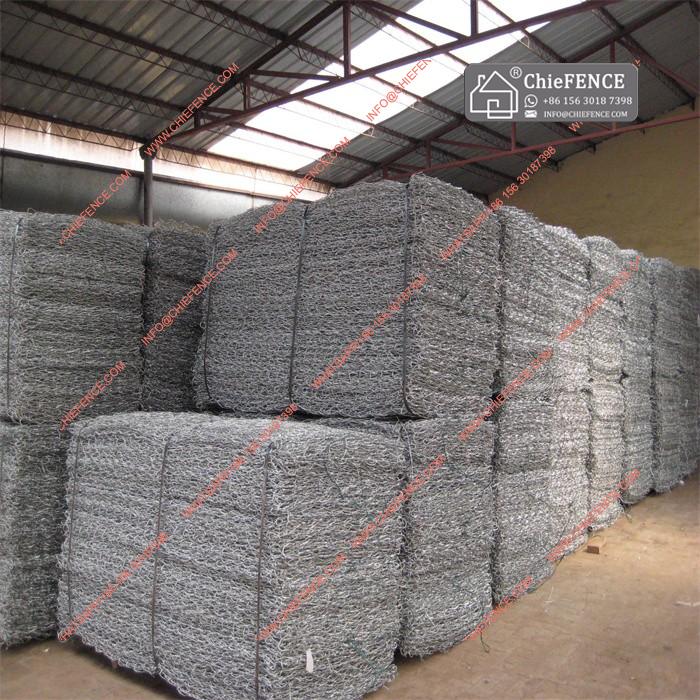

Gabion box
Mesh Opening (MM)
Wire Diameter (MM)
(PVC Wire)
60X80
2.0-2.8
2.0/3.0-2.5/3.5
The baskets
are supplied
with
internal diaphragms
80X100
2.0-3.2
2.0/3.0-2.8/3.8
80X120
2.0-3.2
2.0/3.0-2.8/3.8
100X120
2.0-3.4
2.0/3.0-2.8/3.8
100X150
2.0-3.4
2.0/3.0-2.8/3.8
120X150
2.0-4.0
2.0/3.0-3.0/4.0
