Chiefence- PALISADE FENCE FOR SIGNAL BASE STATIONS
chiefence- Palisade FENCE FOR SIGNAL BASE STATIONS
1.Structure
1.1The fence is bonded with anti-theft bolts and nuts. The fence is using high-density materials, it is capable of endure high-level of impact.

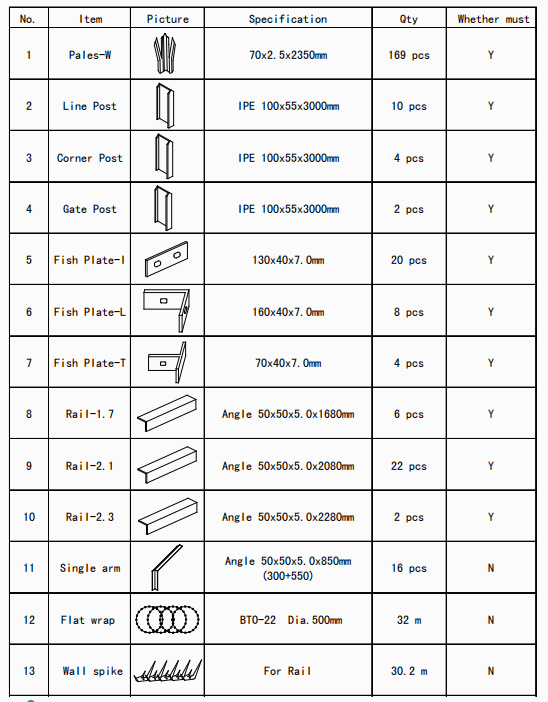

1.1.1For the safety of shelters and equipment, prevent unauthorized entry.Fence consists of: mid stand- ing post, angle post, crosspiece, rail, razor wire support and razor wire etc.
1.1.2To ensure the quality of the fence, The thickness of steel material is 2.5mm minimal. Fence is equipped with burglarproof bolts and nuts. The height of the fence is 2350mm, piercing top. Rails and post are at the same height. All joint points are connected with burglarproof bolts, nuts and matching spring washers.
1.1.3500mm Razor wire is installed on the top of the fence. Razor wire is fixed on razor wire support by hot dipped galvanized wire. The support is 500mm higher than the posts for easy installation.
1.2.The fence have two kind of surface:
1.Hot dipped galvanized, 2. Hot dipped galvanized and Polyester Powder Coating.
1.2.1Hot dipped galvanized. the fence is treated with hot dipped galvanization. It has high-level of corrosion, rust and salt-fog resistance.
1.2.2Hot dipped galvanized and Polyester Powder Coating, Except the ability of corrosion, rust and salt-fog resistance. It also can be done by colored. Which can be as request of clients.
1.3.Razor wire is installed on top of every part of the fence; it is effective for anti-theft, other anti-theft equipment can be installed by order.
1.4.Standard manufacturing, the fence parts are manufactured in the factory, only transportation and installation needed to set it up. It ensure the quality of the fence, also shortens installation lead- time.
2.Installation
2.1.Easy installation, assemble. It greatly shortens the installation lead-time, reduces the activity on site.
2.2.Able to look through the fence, avoid blind spot on the shelter, and reduce the burglarproof then the maintenance cost.
2.3.Able to conquer the install limitation on site, then ensure the quality of installation and lengthen it tenure of usage.
3.Transportation
Manufactured by industrial standard, suitable for road, rail, maritime transportation.
4.Applicant

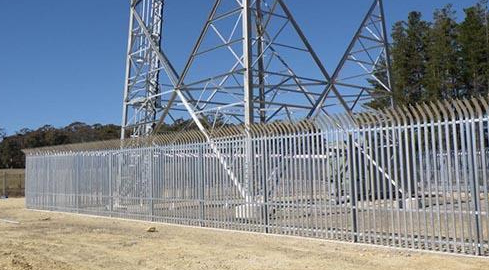

For shelters and camps or other location of telecomputer base, equipment base etc.
|

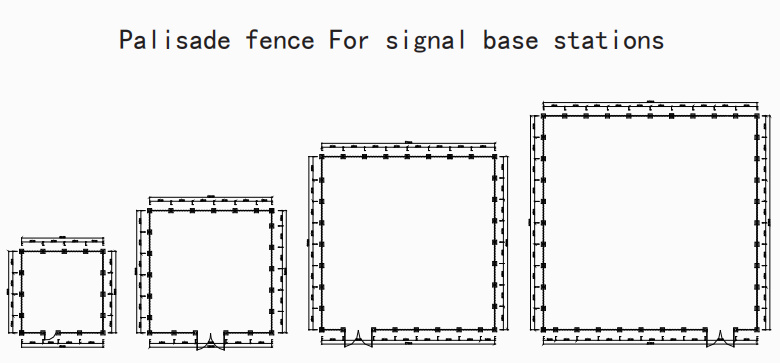

type |
Site size |
height |
finish |
gate |
loading |
|

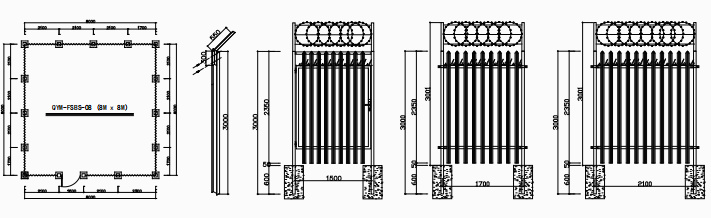

Chiefence-08 |
8mx8m |
2.4m |
Hot dip galvanized |
1 x single 1.5m |
16 sets/20’F |
|

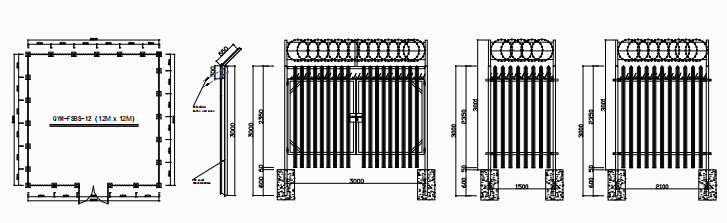

Chiefence-12 |
12mx12m |
2.4m |
Hot dip galvanized |
1 x double 3.0m |
11 sets/20’F |
|
Chiefence-17 |
17mx17m |
2.4m |
Hot dip galvanized |
1 x double 3.0m |
8 sets/20’F |
|

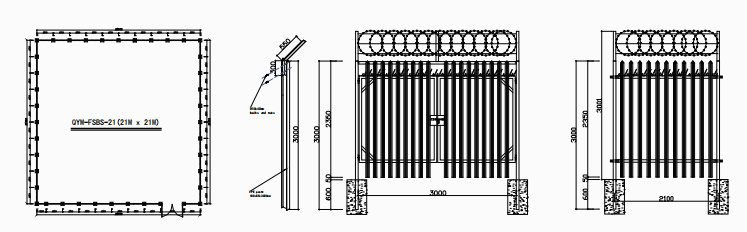

Chiefence-21 |
21mx21m |
2.4m |
Hot dip galvanized |
1 x double 3.0m |
6 sets/20’F |
