Description
chiefence 3D welded fence, 3d fencing
ChieFence 3d fencing is characterized by a horizontally depressed "V"-shaped beam, in which horizontal wires span the entire width of the panel, As a special welding wire board, 3D security welded fence panels are mostly made of carbon steel galvanized or iron wire, which is welded into panel and then bent suitable “V” angle.
The 3D security welded wire fence system has a unique appearance, beautiful appearance, and medium safety protection level. It is an ideal safety protection equipment for residential and leisure places.
Due to its heavy metal wire, rigid welding structure, fully tightened bolt assembly, super durable and environmentally friendly powder coating, it still provides better performance and longer service life to prevent theft and damage
|
3D fence sepecification |
|
|
Aperture |
50*200mm/50*100mm |
|
Wire diameter |
4mm/5mm |
|
Height range |
630mm-2230mm |
|
Width range |
2300mm/2400mm / 2500mm / 2900mm |
|
Fittings |

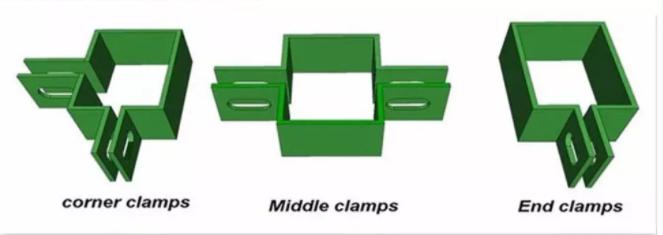

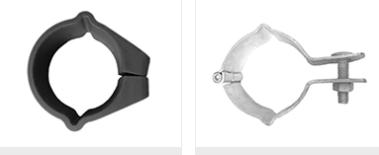

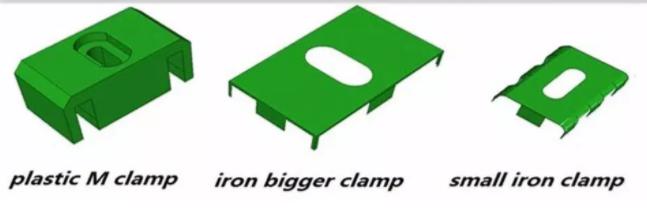

Spider clips/plastic clamp/steel clamp with bolts and nuts |
|
Color |
All RAL colors available |
The 3D welded fence panel have a variety of post options
|
3D fencing panel Post options |
||||
|
option |
Size |
Thickness |
Fittings |
Type |
|
Square |
40*60mm |
1.2-2.0mm |
|
Common |
|
50*50mm |
1.2-2.0mm |
Common |
||
|
60*60mm |
1.2-2.5mm |
Common |
||
|
60*80mm |
2.0-2.5mm |
Strong |
||
|
I post |
70*44mm |
1.2-2.0mm |
|
Common |
|
Round post |
48mm |
1.0-3.0mm |
|
Common |
|
60mm |
1.0-3.0mm |
Strong |
||
|
Peach Post |
50*70mm |
1.2mm |
|
Common |
|
70*100mm |
1.2mm |
Strong |
||
